This step allows you to define one or more work areas for a project.
The work area is the geometric boundary of the project. Work areas are typically on roadways, but they don't have to be.
Atlas provides several different ways to define a project work area in the Create a new work area drop down list.

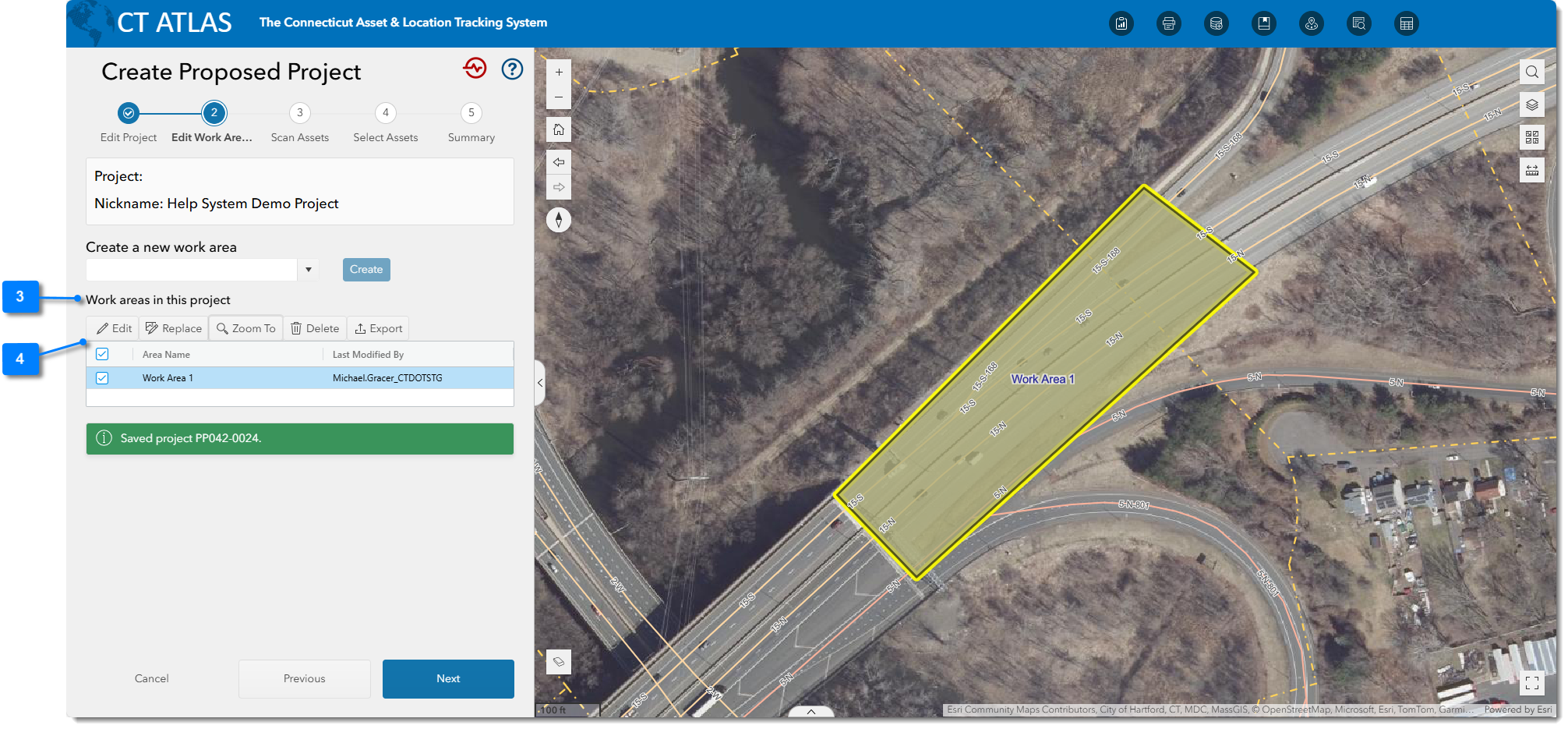

To create a new work area:
1.Select work area from the list.
2.Click Create button to create a work area with the selected type.
.png)

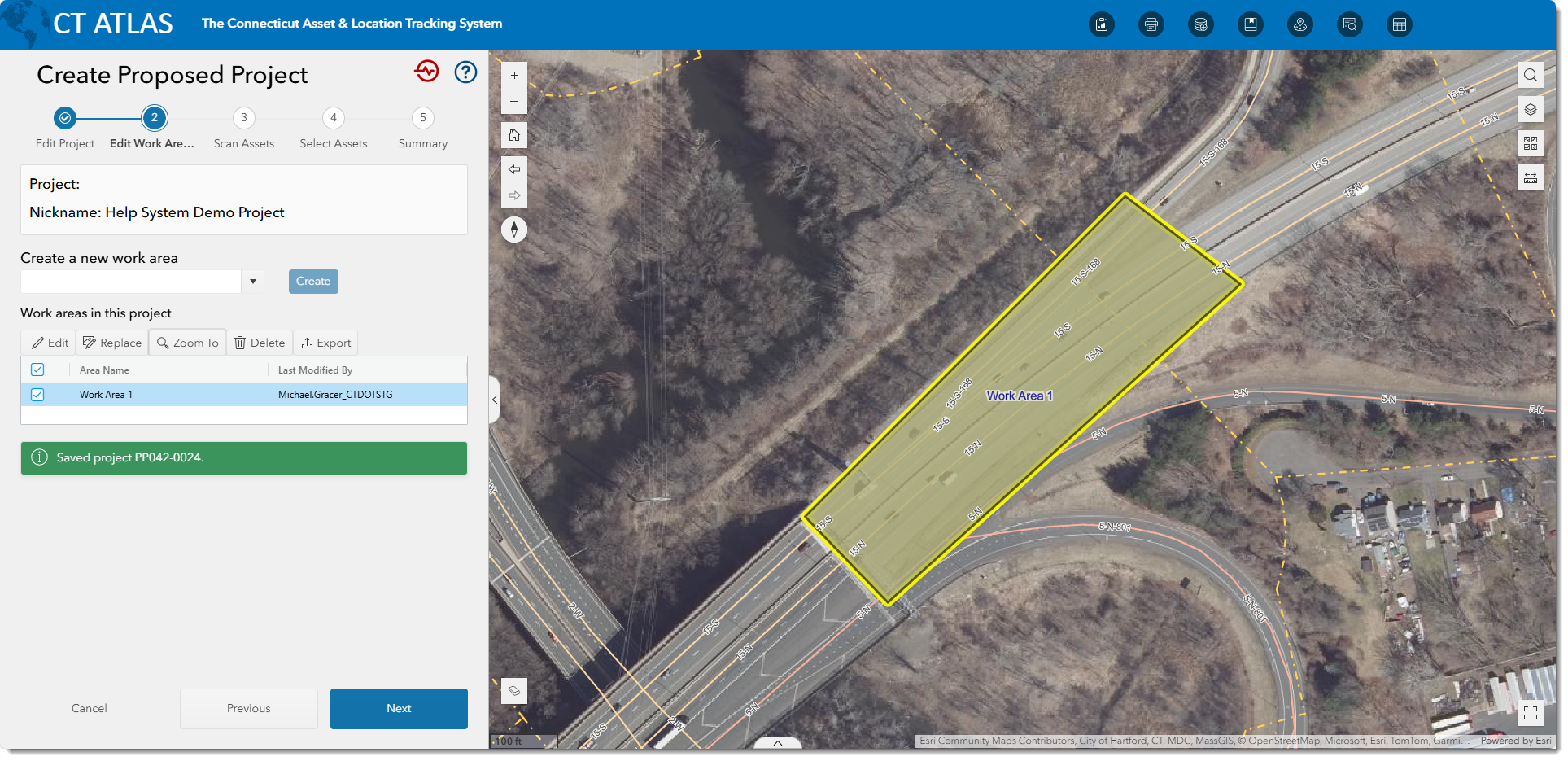

3.Created work area will be added to the list.
.png)
4.Grid has the following functionalities you can use:

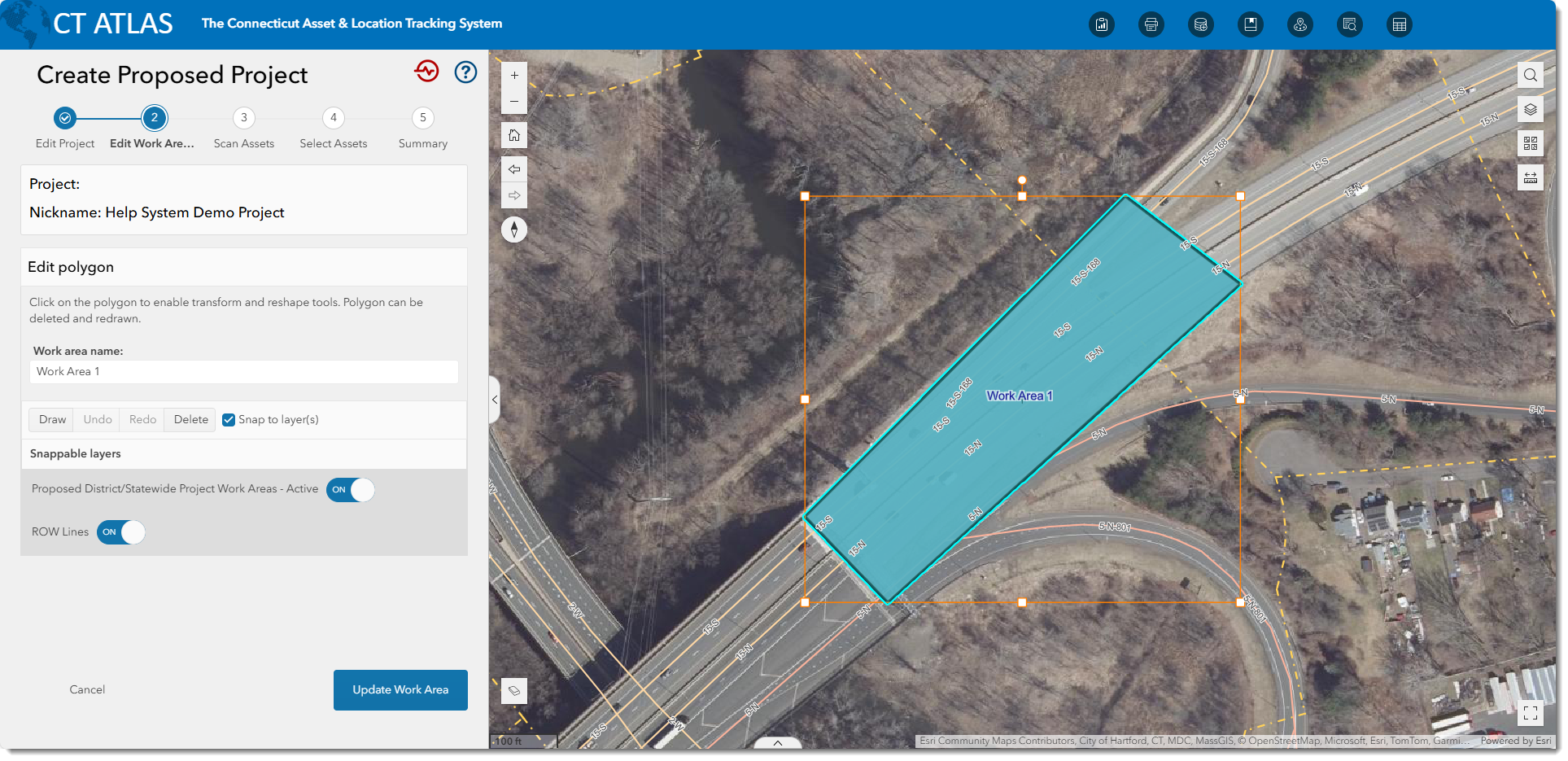

•Edit - Rename the work area and update the polygon.
.png)

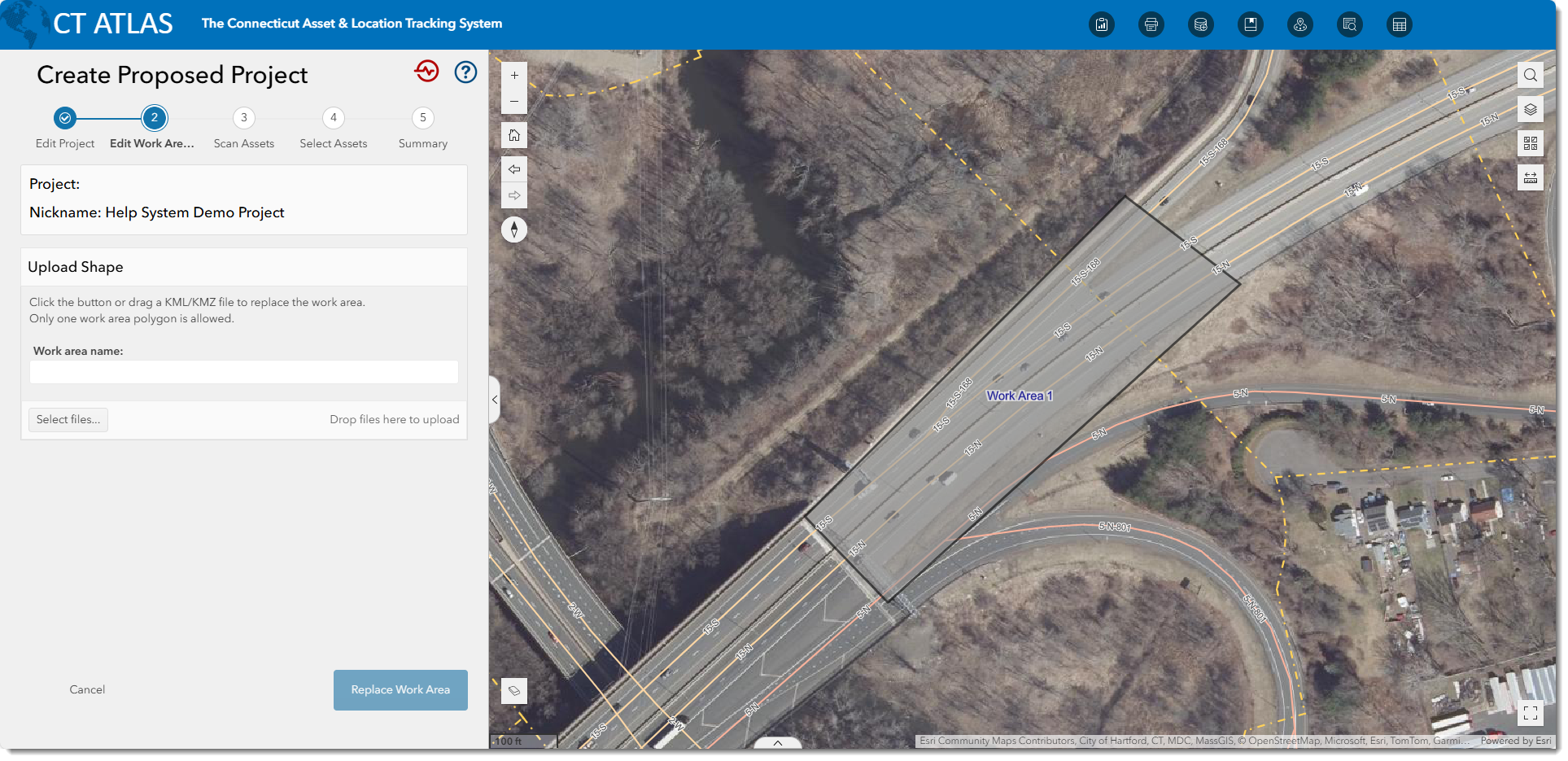

•Replace - Replace the work area by uploading a KML/KMZ file. Only one work area polygon is allowed.
.png)
•Zoom to - It will zoom to and highlight the work area.
.png)

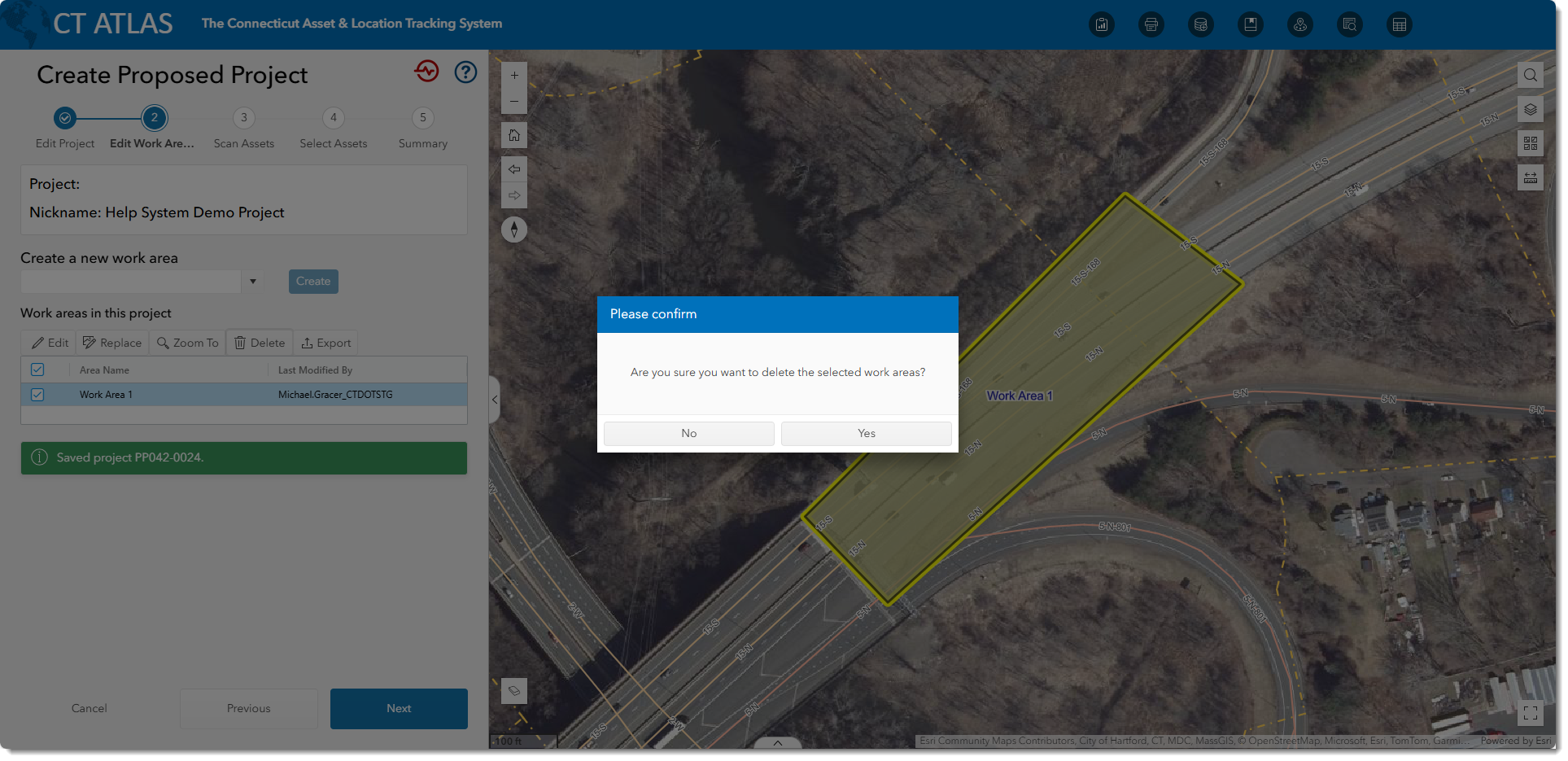

•Delete - Delete the work area.

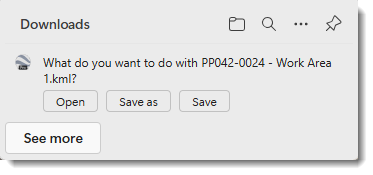

•Export - Export the work area as a KML file.
•Grid's built-in controls .png) to sort or filter the list.
5.Click the Next button to advance to the next step.
|
